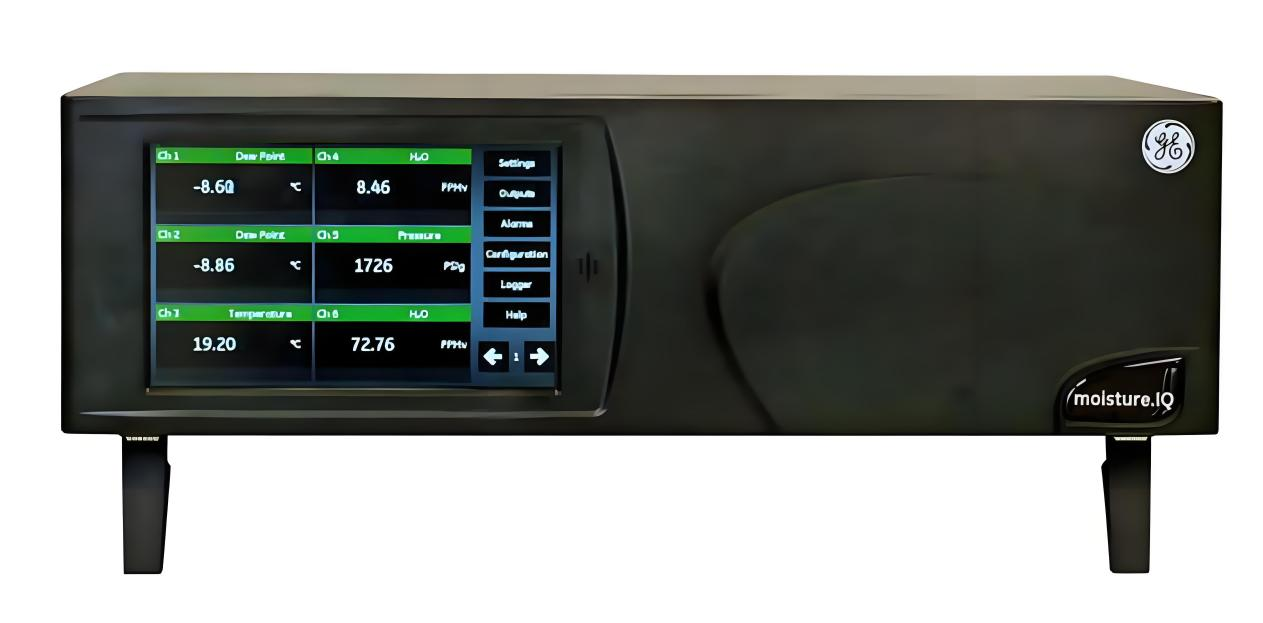

Performance characteristics of MOISTUREIQ

1. Input:

Moisture: 1 to 6 channels

Temperature: 1 to 6 channels

Pressure: 1 to 6 channels

Oxygen: 1 to 6 channels

Auxiliary inputs (optional): 2 inputs can be installed per channel; can be used for 0/4-20mA and 0-4V inputs, such as oxygen analyzers, thermal conductivity analyzers, flow meters, pressure transmitters, temperature transmitters, etc.

2. Intrinsically safe: current isolation and energy-limiting circuits provide intrinsically safe protection for all inputs except auxiliary inputs.
3. Analog outputs: 2 outputs per channel; internal opto-electronic isolation; 10bit (0.1%) resolution
4. Standard switch-selectable outputs:

0 to 2V, minimum load 10kΩ

0 to 20mA, maximum series resistance 400Ω

4 to 20mA, maximum series resistance 400Ω

Each output can correspond to any parameter of the channel; zero and range set by the user according to the instrument with the corresponding probe range

5. Digital output: RS232 serial communication port; information in ASCII code format at 300, 1200, 2400, 9600 baud rate transmission
6. A/D resolution:

Graphical interface analyzer series probe for 16-bit (0.0015%)

Standard probe for 12bit (0.025%)

7. Output update: minimum 0.5 seconds update time depends on the instrument configuration and measurement mode; continuous update of each channel
8. Computer-enhanced response: standard
9. Data logging: simultaneous logging of up to 12 parameters; stored in battery-backed 64kB RAM; log length depends on the number of parameters and time intervals
10. PC interface software: optional
11. Alarm relays:

Two optional C-array relays SPDT per channel; rated at 2A at 28VAC/28VDC.

High or low limits for each channel can be selected from standard or gas-tight designs; can be set arbitrarily within the instrument’s measurement range

12. Alarm set point accuracy: ± 0.1 ºC dew point
13. Display: Graphic / text LCD with background light
14. Display function: text and/or graphic way, up to six channels/parameter combinations displayed at the same time
15. Required power supply: universal power supply, automatically adjustable from 90 to 260VAC, 50/60Hz
16. Temperature:

Operation: 0 º to 60 ºC

Storage: -30 º to 70 ºC

17. Data retention: Moisture, temperature and pressure calibration data are stored in battery-backed RAM.
18. Self-calibration: at power-up and user-set intervals
19. Preparation time: all specified accuracies are achieved in less than 5 minutes
20. Configurations: rack-mounted, bench-mounted, tray-mounted, NEMA-4 weatherproof, NEMA-7 explosion proof
21. Dimensions (H x W x L):

Rack-mounted: 13.26 x 35.41 x 40.33 cm

Table-mounted: 14.86×35.41×43.26 cm

Tray: 20.96×41.91×40.33 cm
