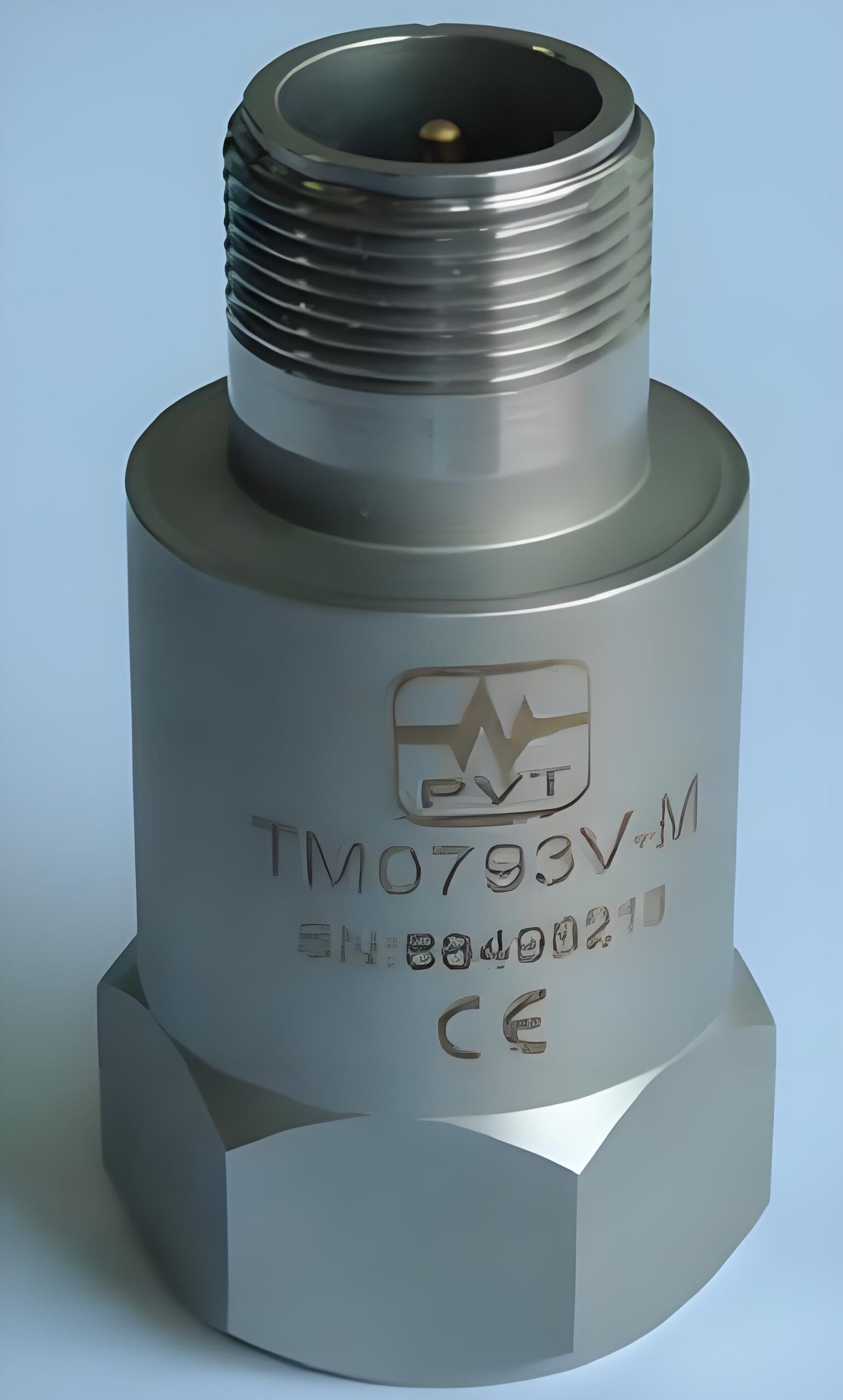

TM0793V-K piezoelectric crystal type speed sensor. The velocity sensor and kit includes the velocity probe and a 5 meter cable.The TM0793V-K can be connected directly to PVTVM monitoring instruments such as the DTM Digital Transmitter Meter, TR Transmitter, and PT580 Digital Vibration Switch. It is used to measure enclosure vibration and output a velocity or displacement signal.

Technical Parameters

Electrical indicators

Sensitivity: 4.0mV/mm/sec (100mV/in/sec), @ 25℃, ±10

Amplitude: 5.0V pk

Linearity: 1%

Frequency Response: 2 – 7,000Hz (±3dB)

Isolation: Circuit isolated from case

Lateral sensitivity: < 5%

Power supply: 3 – 10mA constant current, 18 – 30VDC

Resonant frequency: 15 kHz

Bias voltage: 10 – 14VDC

Maximum transmission distance: 300 meters

Environmental and Physical Specifications

Temperature range: -50°C to +120°C

Protection class: IP67

Weight: 250 grams

Housing material: stainless steel

Hazardous Location Approval:

ATEX: II 1 G Ex ia IIC T4

CSA: Class l, Div. 1, Groups A, B, C and D

I.S. Class I, Div. 1, Group A,B,C,D and T4, Ex ia IIC T4

Ex ia IIC T4

CSA: Class I, Div.2, Groups A, B, C, D

Non- Incendive

IECEx DEK 20.0008

Ex ia IIC T4 Ga

-45 °C ≤ Ta ≤ +100 °C

TR CU: 0Ex ia IIC T4 Ga X

№ ТС RU C-US. AA87.В.01245

NANIO CCVE

Approval criteria: ATEX: EN IEC 60079

ATEX: EN IEC 60079-0:2018

EN 60079-11:2012

IECEx: IEC 60079-0: 2017 (Ed. 7)

IEC 60079-11: 2011 (Ed. 6)

TR CU: GOST 31610.0-2012 (IEC 60079-0: 2004)

GOST 31610.15-2014 (IEC 60079-15: 2010)

Connections

A: Power (red cable)

B: Common (white cable)

Shield
