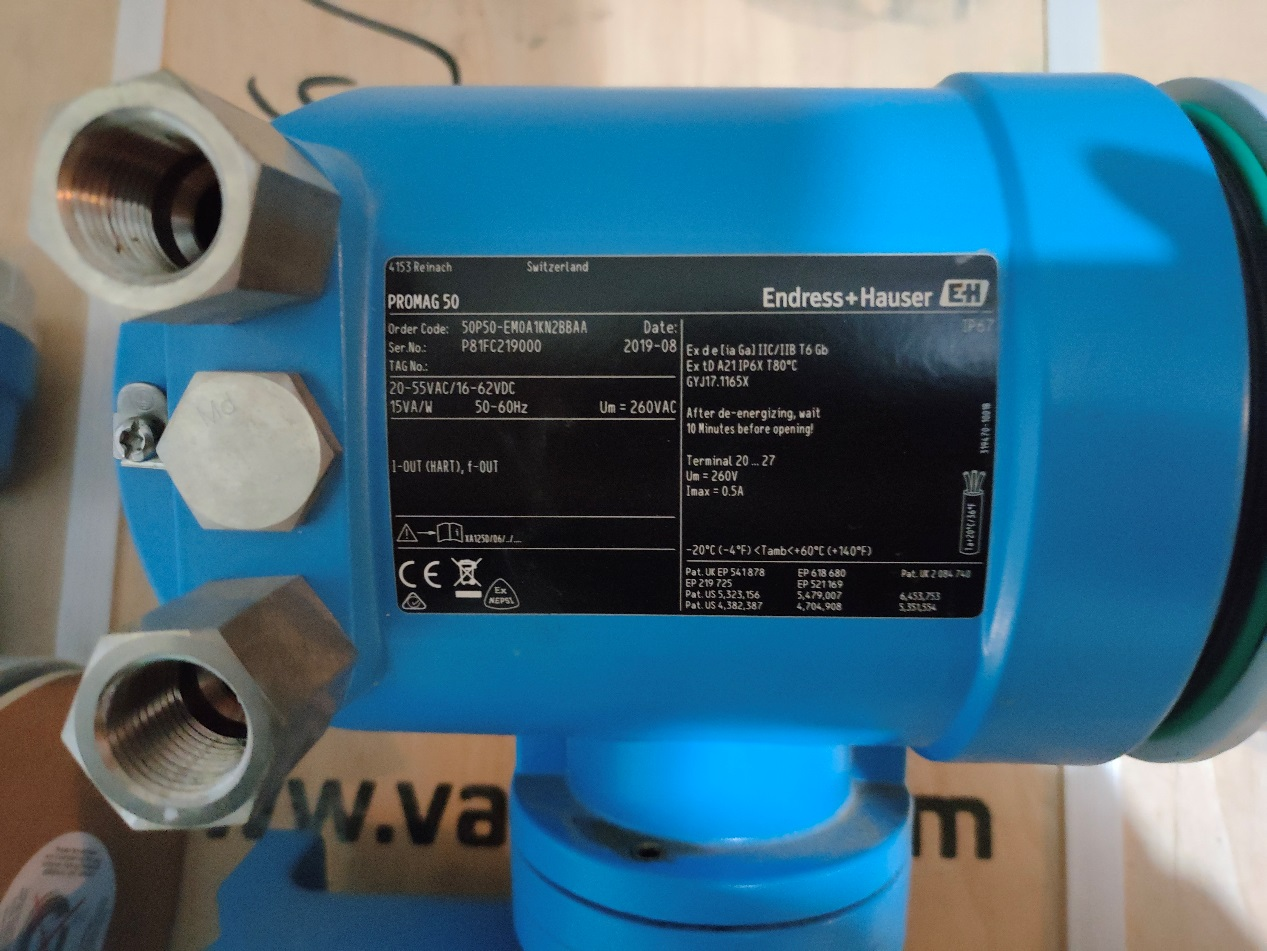

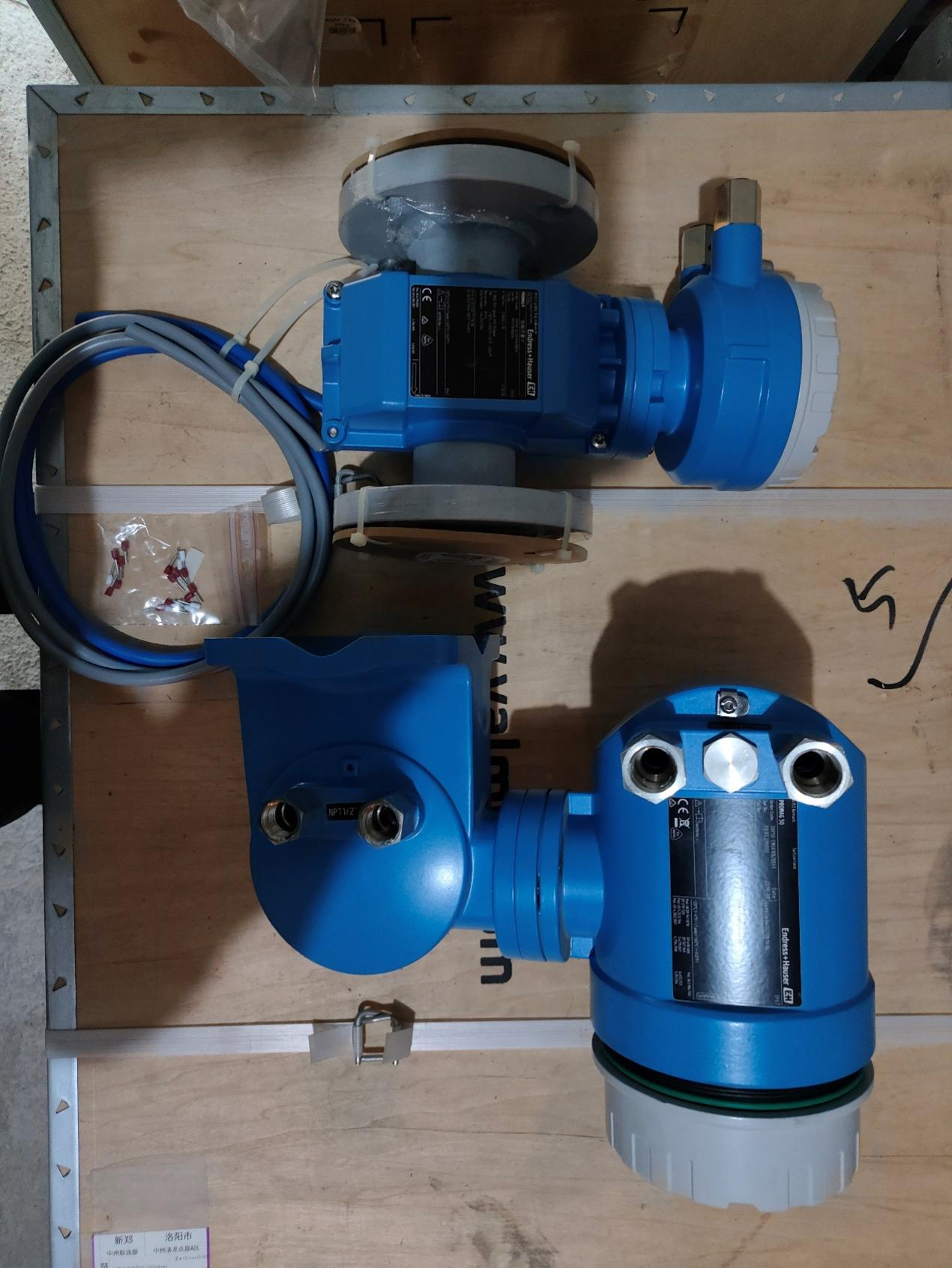

E+H Electromagnetic Flowmeter PROMAG 50
Model: 50P5O-EMOA1KN2BBAAP81FC219000

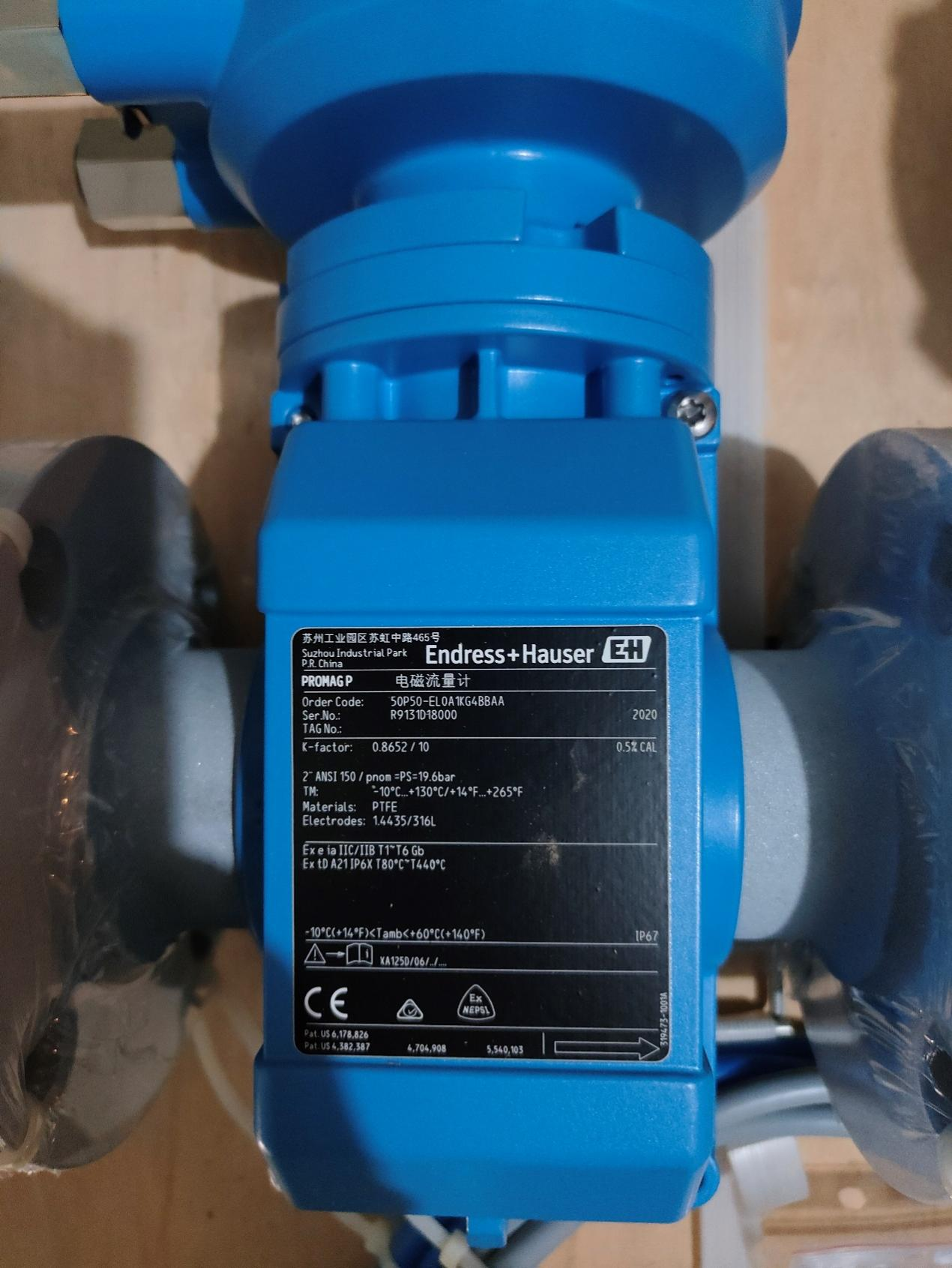

E+H Electromagnetic Flowmeter PROMAG P
Model: 50P50-EL0A1KG4BBAA



Measuring principle

Electromagnetic



Product headline

std_productprofile_product_usp_34684_1508942319.

Dedicated to chemical and process applications with corrosive liquids and high medium temperatures.



Sensor features

Diverse applications – wide variety of wetted materials. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.

Nominal diameter: max. DN 600 (24″). All common Ex approvals. Liner made of PTFE or PFA.



Transmitter features

std_productprofile_product_benefits_34681_1508942231. std_productprofile_product_benefits_34683_1508942232. std_productprofile_product_benefits_34682_1508942239.

std_successorproducts_product_differentiating_tech_features_35305_1509527304. std_successorproducts_product_differentiating_tech_features_35308_1509527353. std_successorproducts_product_differentiating_tech_features_35309_1509527353.



Nominal diameter range

DN 15…600

1/2″…24″



Max. measurement error

±0.5%

±0.2% (optional)



Measuring range

0…9’600 m3/h



Max. process pressure

PN10…40

Cl 150…300

JIS 10…20K

AS 2129 Table E

AS 4087 PN16



Medium temperature range

-40…+180°C

(-40…+356°F)



Ambient temperature range

-20…+60°C

-40…+60°C (optional)



Degree of protection

IP 67 (NEMA 4x)

IP 68 (Nema 6P)



Display/Operation

Two line display with backlit

Push button



Outputs

4…20 mA

Pulse/Frequency

Status



Inputs

Status



Digital communication

HART

PROFIBUS PA



Hazardous area approvals

ATEX, IECEx, NEPSI, FM, CSA



Product safety

CE, C-tick, EAC marking



Pressure approvals and certificates

PED,CRN
